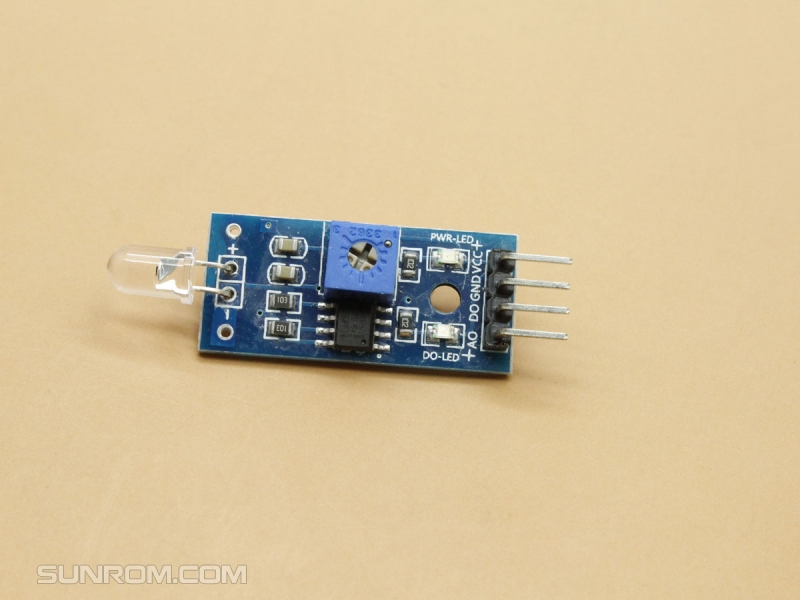

Light Sensor Module - Photodiode
Detects light and outputs digital and analog signal. The digital signal can have a trigger level. LEDs indicate power and output signal.
Product Code 4695
Downloads
PT Datasheet & AppNotes
Light Sensor Module - Photodiode
Sunrom Product Code for Ordering:
4695
Specifications
- Operating Voltage: 3.3V to 5V DC
- Operating Current: 15ma
- Output Digital - 0V or 5V, Adjustable trigger level from preset
- Output Analog - 0V to 5V based on light on sensor
- LEDs indicating output and power
- PCB Size: 3.2cm x 1.4cm
- LM393 based design
Board Schematic
Pin details
- VCC = 3.3V to 5V DC
- GND = Ground
- DO = Digital Output
- AO = Analog Output
