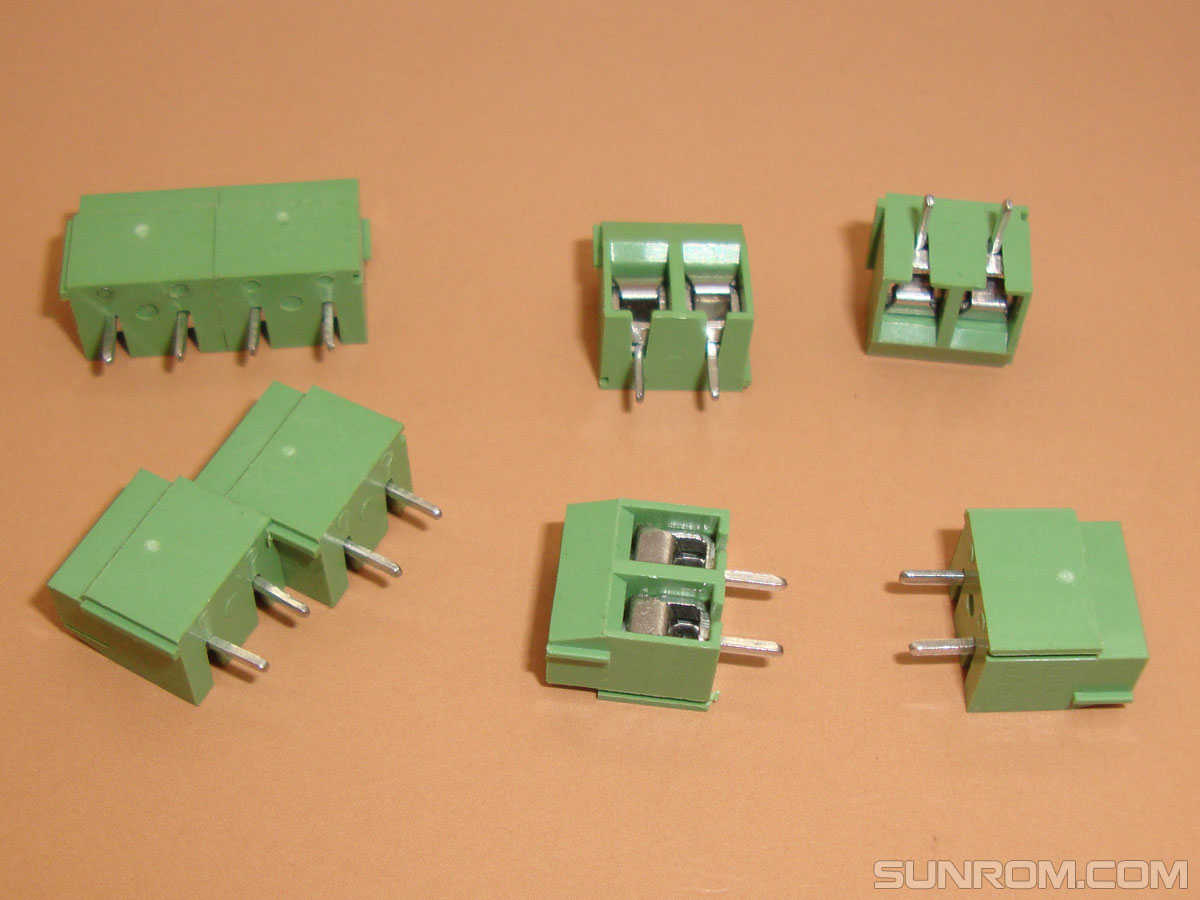

2P 5mm 10A Screw Terminal Light
PCB Mounting for wire connections, Built in side groves to stack next to each other during long application.
Product Code 3883
Quantity Pricing
Quantity :
Price (Discount%)
1-49 :
Rs.8.25/- (0%)
50-99 :
Rs.7.84/- (5%)
100-499 :
Rs.7.43/- (10%)
500-999 :
Rs.7.26/- (12%)
1000+ :
Rs.7.01/- (15%)
2P 5mm 10A Screw Terminal Light
Sunrom Product Code for Ordering:
3883
Connections
2
Pitch
5 mm
Current
10 A
Dimensions
BOM：
|
No. |
ITEM |
Origin |
Material |
Surface |
QTY |
|
1 |
Housing |
Own making |
PA66（UL 94V-0） |
—— |
1 |
|
2 |
screw |
outsourcing |
Steel(A3) |
Zinc plated |
2-24 |
|
3 |
Wire Cage |
outsourcing |
Brass or Stee |
Nickel Plated |
2-24 |
|
4 |
Pin header
|
Own making |
Brass |
Tin Plated |
2-24 |
| 5 |
Leaf spring |
Own making |
Stainless steel | —— | 2-24 |
Technical data：
Wire range：26-14AWG 2.5mm²
Voltage&Current：300V 10A
Torque：0.4N.m
Withstand Voltage：AC2000V 60s
Environment：
Operating Temperature：-40℃ ~ +105℃
Inspection standards：
GBT 2828.1-2012
Use：Wire Stripping Lenght：6-7±0.5mm
Soldering：
Wave Soldering：260℃/5s
Hand Soldering：soldering iron350℃/10s
