TCS34725 RGB Color Sensor Module - IR filter and White LED - Digital I2C Output

he TCS34725 device provides a digital return of red, green, blue (RGB), and clear light sensing values. An IR blocking filter, integrated on-chip and localized to the color sensing photodiodes, minimizes the IR spectral component of the incoming light and allows color measurements to be made accurately. The high sensitivity, wide dynamic range, and IR blocking filter make the TCS34725 an ideal color sensor solution for use under varying lighting conditions and through attenuating materials. This data is transferred via an I2C to the host.

Features

• Integrated IR blocking filter
• 3.8M:1 dynamic range
• Four independent analog-to-digital converters
• A reference channel for color analysis (clear channel photodiode)

Benefits

• Minimizes IR and UV spectral component effects to produce accurate color measurement
• Enables accurate color and ambient light sensing under varying lighting conditions
• Minimizes motion/transient errors
• Clear channel provides a reference which allows for isolation of color content

This product suits for the following applications:

• Light color temperature measurement
• RGB LED consistency control
• Health fitness
• Industrial process control
• Medical diagnostic equipment

• Supply Voltage [V] 3.3-5V
• Interface Max 5V Level I2C
• Color Sensor Channels RGBC
• IR Blocking Filter Yes
• Programmable
• Temperature Range [°C] -40 to 85

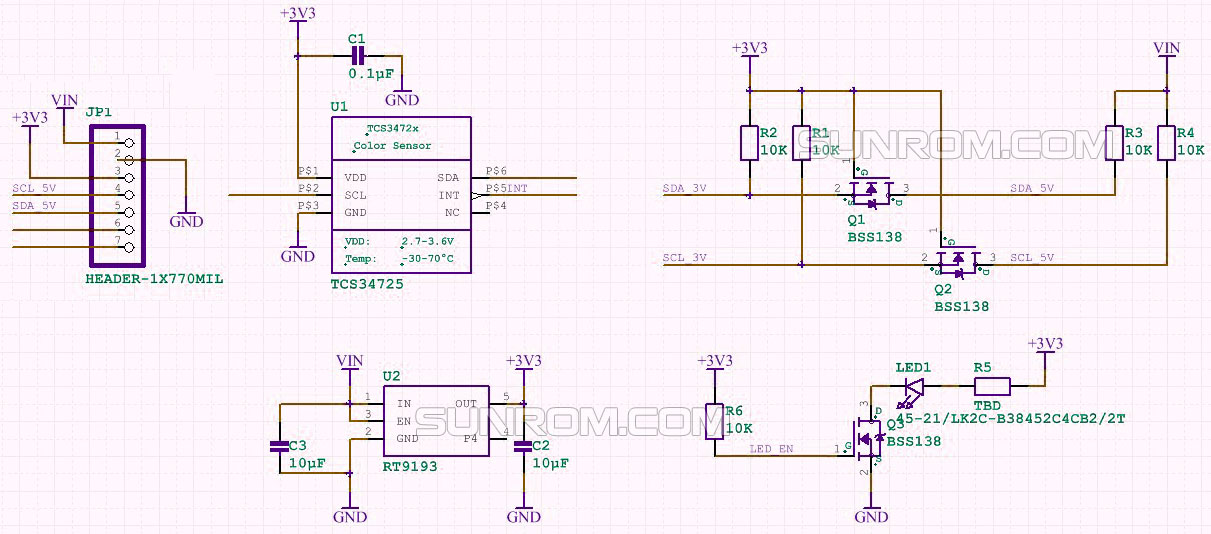

Schematic
