RF Module, 2.4Ghz, nRF24L01+, SMD
Low Profile SPI interface RF transceiver
Product Code 3962
Quantity Pricing
Quantity :
Price (Discount%)
1-9 :
Rs.148.00/- (0%)
10-24 :
Rs.140.60/- (5%)
25-49 :
Rs.137.64/- (7%)
50-99 :
Rs.134.68/- (9%)
100-249 :
Rs.133.20/- (10%)
250-499 :
Rs.131.72/- (11%)
500-999 :
Rs.128.76/- (13%)
1000+ :
Rs.125.80/- (15%)

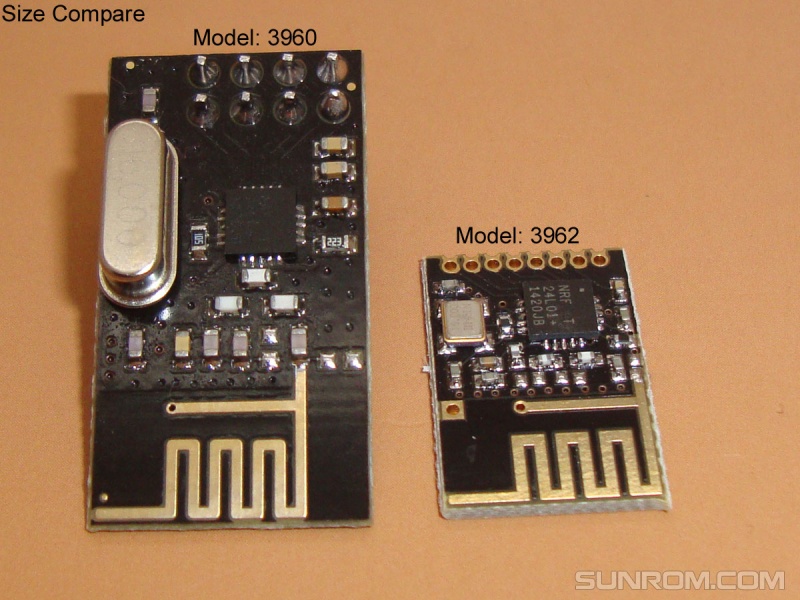

RF Module, 2.4Ghz, nRF24L01+, SMD
Sunrom Product Code for Ordering:
3962
This module based on Nordic nRF24L01+, highly integrated, ultra low power (ULP) 2Mbps RF transceiver for the 2.4GHz ISM (Industrial, Scientific and Medical) band. Nordic nRF24L01+ integrates a complete 2.4GHz RF transceiver, RF synthesizer, and baseband logic including the Enhanced ShockBurst™ hardware protocol accelerator supporting a high-speed SPI interface for the application controller.
Features
- Worldwide license-free 2.4GHz ISM band operation
- 250kbps, 1Mbps and 2Mbps on-air data-rate options
- Enhanced ShockBurst™ hardware protocol accelerator
- Ultra low power consumption – months to years of battery lifetime
Specifications
- Power supply : 1.9~3.6V
- IO port working voltage : 0~3.3v / 5v
- Transmitting rate : +7dB
- Receiving sensitivity : ≤ -90dB
- Transmission range : 250m in open area
- Dimension : 12x18mm
Pinout, Dimensions and Schematic
Related Links
- Nordic Page for nRF24L01+ Datasheet & Application Notes
- Adruino Playground - nRF24L01
- Great Nordic tutorials (Check links on right side)
- mbed Example
- Example PIC Code
