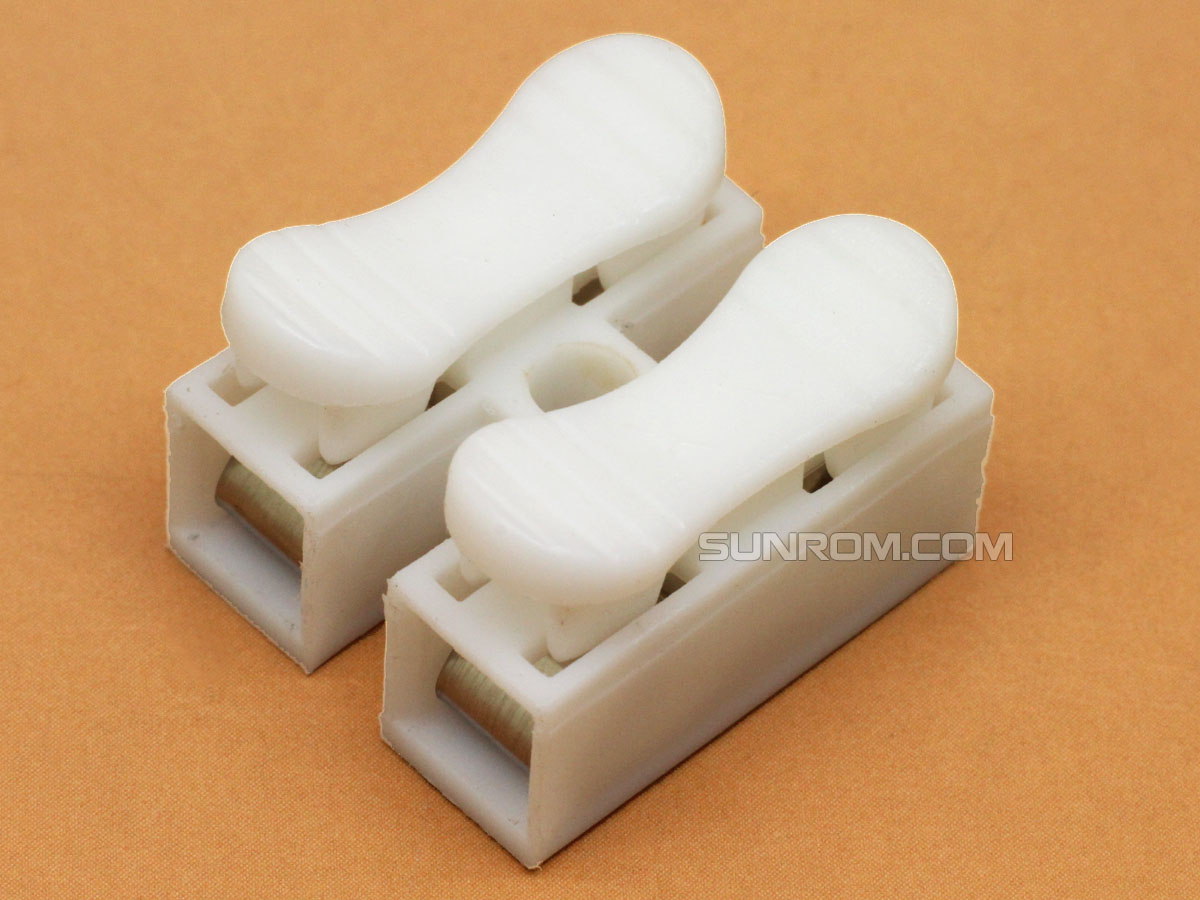

Quick Cable Connector - 2 Way
Press and Insert Wires for quick cable to cable connection, totally eliminating insulation tape. Suitable for 230V AC@10A with maximum 2500W Power
Product Code 5889
Quantity Pricing
Quantity :
Price (Discount%)
1-49 :
Rs.12.00/- (0%)
50-99 :
Rs.11.40/- (5%)
100-499 :
Rs.10.80/- (10%)
500-999 :
Rs.10.56/- (12%)
1000+ :
Rs.10.20/- (15%)
Quick Cable Connector - 2 Way
Sunrom Product Code for Ordering:
5889
Specification
- 2 Pin Quick Wire Connector
- Material: PP flame retardant plastic
- Current: Rated current 10A
- Voltage: Rated voltage 250V
- Work Temperature: -40 to 100 degrees Celsius
- Wiring Range: 0.5-3.5 mm2
Performance: frame made of pressed steel, good elasticity, high strength
Uses: Applied to motor, electrical control, power, household appliances, lighting, machinery etc. wire joints
Life Test: The electrical lighting fast terminals can be used continuously for 50 years, is 10 times more electrical tape.
Three steps to finish wire connecting with No screws and soldering:
1. Press the spring clip
2. Insert wires
3. Release and complete
