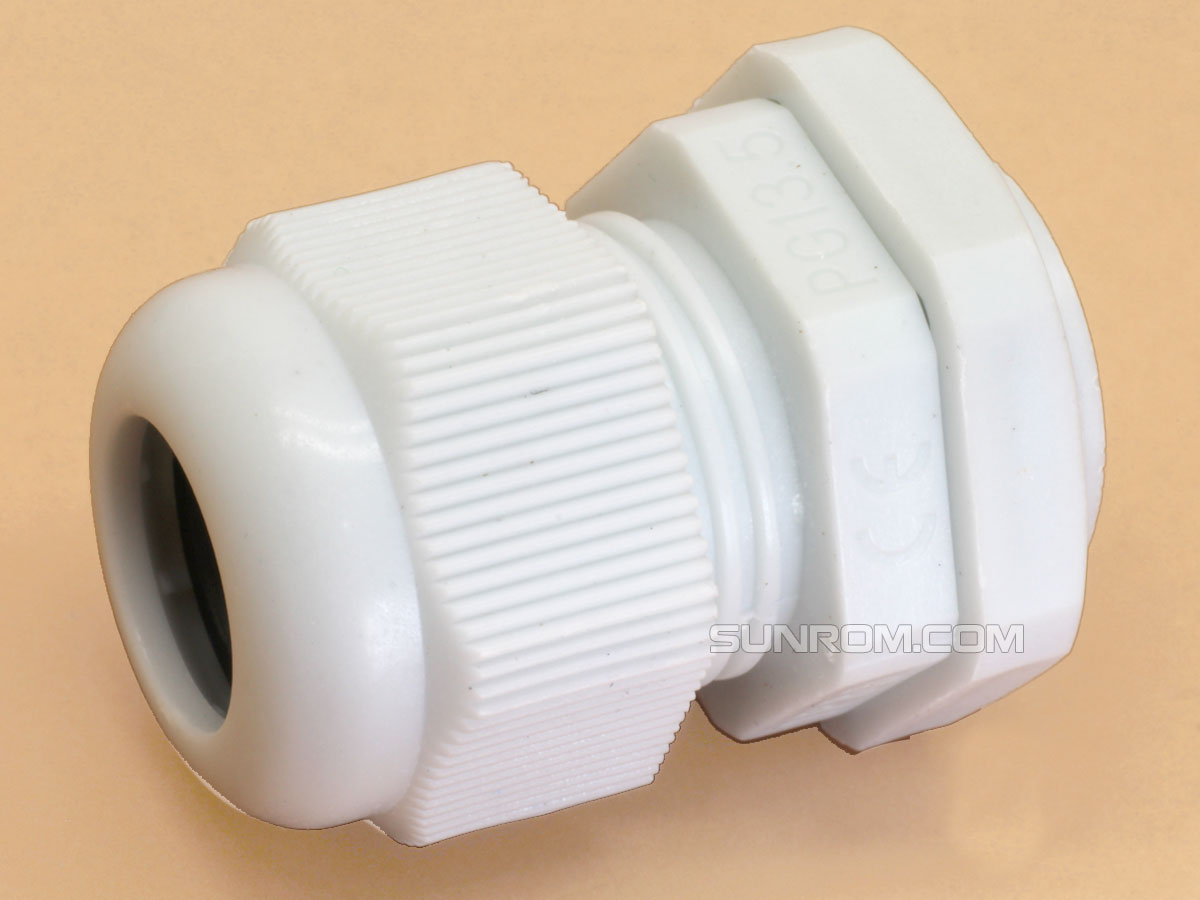

PG13.5 White Nylon Cable Gland for Cable Dia 9-12mm
Designed to attach and secure the entering of an electrical cable to the equipment
PG13.5 White Nylon Cable Gland for Cable Dia 9-12mm
Sunrom Product Code for Ordering:
6105
Color
White
P-Panel Hole
20.5 mm
L-Exposed Length
26 mm
Dimensions B-Diameter
27 mm
Dimensions A-Cable Range
9-12 mm
Dimensions C-Thread Length
10 mm
|
Dimensions |
||||||
|---|---|---|---|---|---|---|
| P.Code | Color | A-Cable Range mm |
P-Panel Hole mm |
B-Diameter mm |
C-Thread Length mm |
L-Exposed Length mm |
| 6102 | White | 3-6 | 12.5 | 18 | 9 | 20 |
| 6920 | Black | 3-6 | 12 | 18 | 9 | 20 |
| 6111 | Black | 11-14 | 22.5 | 29 | 11 | 28 |
| 6110 | Black | 9-12 | 20.5 | 27 | 10 | 26 |
| 6109 | Black | 7-9 | 18 | 24 | 10 | 22 |
| 6108 | Black | 6-8 | 16 | 22 | 10 | 22 |
| 6107 | Black | 3-6 | 12.5 | 18 | 9 | 20 |
| 6106 | White | 11-14 | 22.5 | 29 | 11 | 28 |
| 6105 | White | 9-12 | 20.5 | 27 | 10 | 26 |
| 6104 | White | 7-9 | 18 | 24 | 10 | 22 |
| 6103 | White | 6-8 | 16 | 22 | 10 | 22 |
| 7196 | Black | 3-6 | 12.5 | 18 | 9 | 20 |
