Optical Slot Sensor

Object counting, Shaft rotation counting, Coin detecting, Speed Measure, Groove Coupling, Pulse counting

Quantity Pricing

Quantity :

Price (Discount%)

1-9 :

Rs.207.00/- (0%)

10-24 :

Rs.196.65/- (5%)

25-49 :

Rs.192.51/- (7%)

50-99 :

Rs.188.37/- (9%)

100-249 :

Rs.186.30/- (10%)

250-499 :

Rs.184.23/- (11%)

500-999 :

Rs.180.09/- (13%)

1000+ :

Rs.175.95/- (15%)

LM393 Datasheet

Optical Slot Sensor

Sunrom Product Code for Ordering:

4592

Features

Operating voltage 3.3V to 5V DC
Operating current 15mA
LED indication output can interface directly to microcontroller

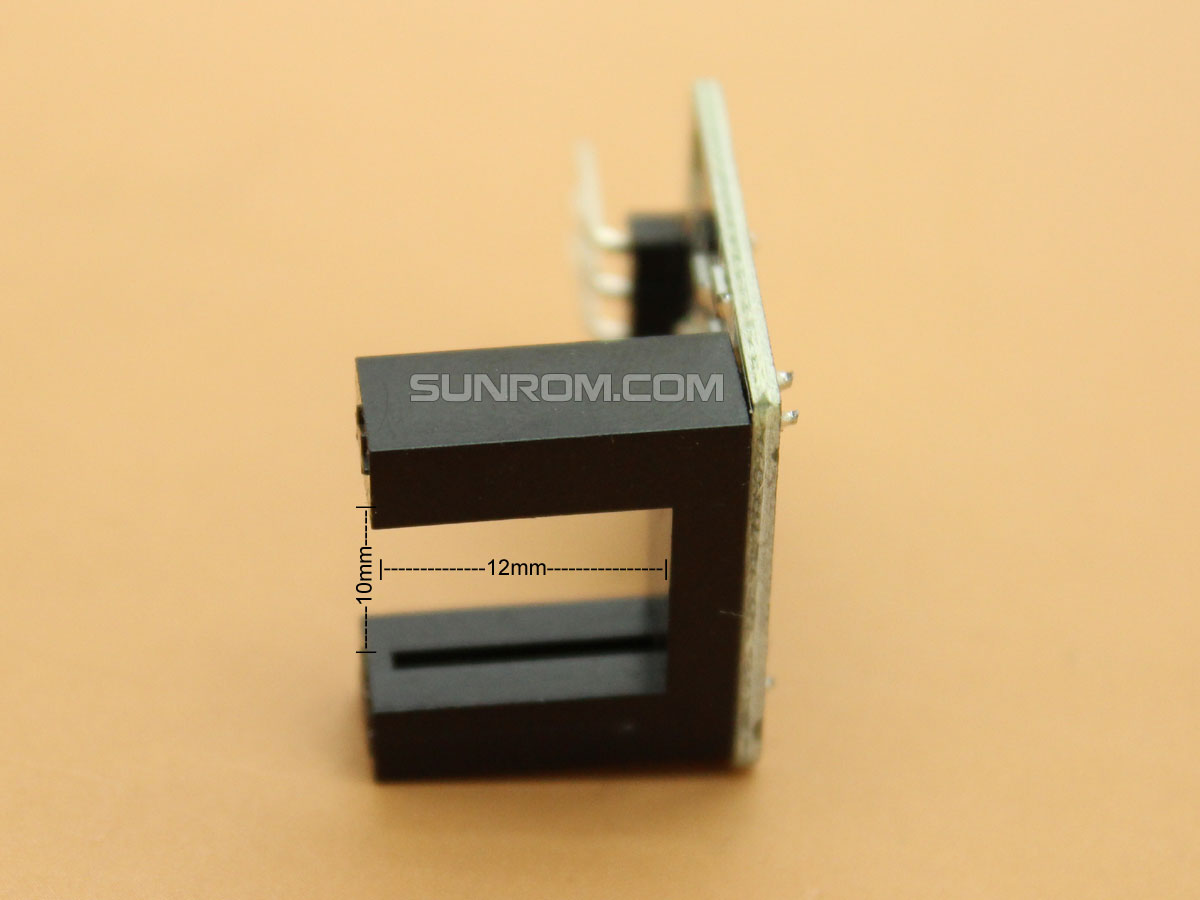

10mm wide slot with 12mm height detects objects via infrared light between its slot
Fast output update since its optical
Output format: Digital switching output (0 and 1)
LED lights when no object, LED comes off when it detects object.
PCB Size: 27x20x17mm
LM393 based processing
H2010 optical sensor contains IR LED and IR photodetector in single package

Board Schematic
