N76E003 - N76E003AT20 - Nuvoton - TSSOP20 - 1T-8051 - 16MHz - 12 bit ADC - 2x UART

1T-8051, 18 KB Flash, 1K SRAM, 2.4V to 5.5V, 18 I/O pins, 16 MHz, Two UARTs, SPI, I²C, 6-ch PWM, BOR, ADC, Timer, SPI

Product Code 5375

Available We dispatch same day if ordered by 1PM (excluding holidays), then courier usually takes 2-5 days.
Real Time Availability
Ready Stock: 142 nos. Factory Leadtime for more quantity: 15 days.
If you order more than 142, We will send two packages, right now available stock and remaining in 15 days
Quantity Pricing
Quantity :
Price (Discount%)
1-49 :
Rs.75.00/- (0%)
50-99 :
Rs.71.25/- (5%)
100-249 :
Rs.67.50/- (10%)
250+ :
Rs.63.75/- (15%)
N76E003 - N76E003AT20 - Nuvoton - TSSOP20 - 1T-8051 - 16MHz - 12 bit ADC - 2x UART
Sunrom Product Code for Ordering:
5375

The N76E003 provides up to 18 I/O pins under 20 pin package and rich peripherals including two UARTs, SPI, I²C, 6-ch PWM output, wake-up function, and Brown-out detector. The competitive features includes a high precision <2% deviation 16 MHz Internal RC oscillator, and a high resolution 12-bit 8 channel ADC. N76E003 supports small form factor packages TSSOP20 (4mm x 6.5mm) and QFN20 (3mm x 3mm) for easy board design.

Pin drop replacement for STM8S003F3P6

N76E003AT20 has:

  • 16-MHz 8051 core
  • 2.4 – 5.5V operating range
  • 18 KB of flash memory
  • 1 K of SRAM
  • Dedicated 6-channel 16-bit PWM module
  • Two UARTs, an SPI peripheral, and an I2C peripheral
  • 12-bit 8-channel ADC @ 500 ksps
  • Programmable slew-rate GPIO
  • Dual data pointers (DPTRs)

Target Application:

Access Control System, Thermostat, Bluetooth Speaker, Electric Meter, Data Collector, Battery charger, Beauty Equipment, Small Home Appliance, etc.

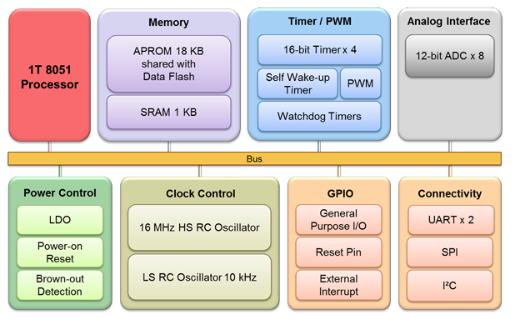

Key Features:

Core
- 1T 8051 processor
- Max frequency up to16 MHz
- Wide operating voltage: 2.4V to 5.5V
- Temperature range: -40℃ to 105℃

Memory
- 18 KB of Flash memory
- 1 KB of SRAM
- Supports configurable Data Flash
- Supports program update by:

ISP (In-System Programming)
ICP (In-Circuit Programming)
IAP (In-Application Programming)
PWM
- Up to 6-ch PWM
- Programmable dead-zone generator

ADC
- 12-bit 8-ch ADC
- Runs up to 500 kSPS

Connectivity
- Two UARTs up to 115200 bps
- One SPI up to 8 MHz
- One I²C up to 400 kHz

Clock Control
- < 2% deviation16 MHz Internal RC oscillator
- 10 kHz Internal RC oscillator

Part No. N76E003AT20
Flash (Kbytes) 18
SRAM (Kbytes) 1K
Data Flash (Kbytes) Configurable
ISP ROM (Kbytes)
I/O up to 18
Timer (16-bit) 4
Connectivity-UART 2
Connectivity-SPI 1
Connectivity-I²C 1
PWM (16-bit) 6
ADC (12-bit) 8
ICP IAP ISP
INT 2
Special Function 1T 8051, 16 MHz internal RC, KBI, on-chip debugger
Operating Temp. Range (°C ) -40 ~ +85
Comp. -
Chip Package TSSOP20 (4.4x6.5)
