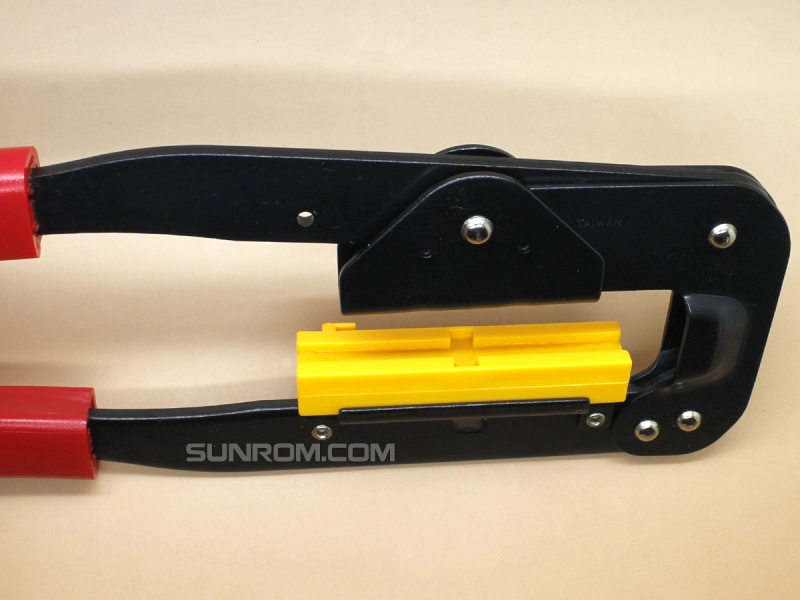

FRC IDC Crimping Tool HT-214
Use for insulation displacement connectors (IDC) onto ribbon cables.
Product Code 5117
Downloads

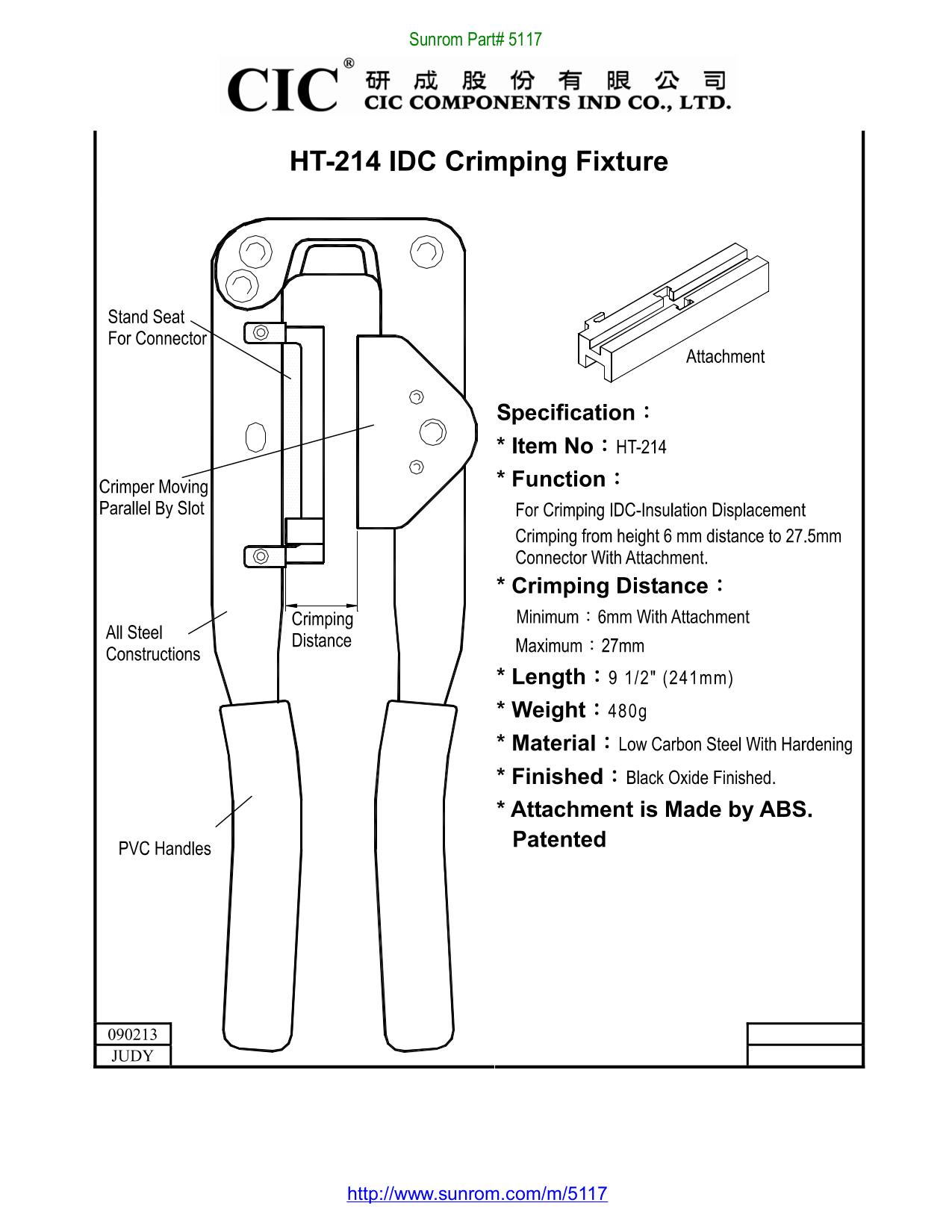

FRC IDC Crimping Tool HT-214 Datasheet
FRC IDC Crimping Tool HT-214
Sunrom Product Code for Ordering:
5117
Type
Tool
IDC Connector Crimping Fixture Tool Use for insulation displacement connectors (IDC) onto ribbon cables.
Features
- Crimping distance: 27.5mm to 6mm (max. 55mm width)
- Stand seat for connector Crimper moving parallel by slot
- PVC handles
- Material: Hardened low carbon steel
- Black oxide finished
- Size: 9.2"L x 3.0"W
- Weight: 1.1lbs.
- Includes IDC attachment
