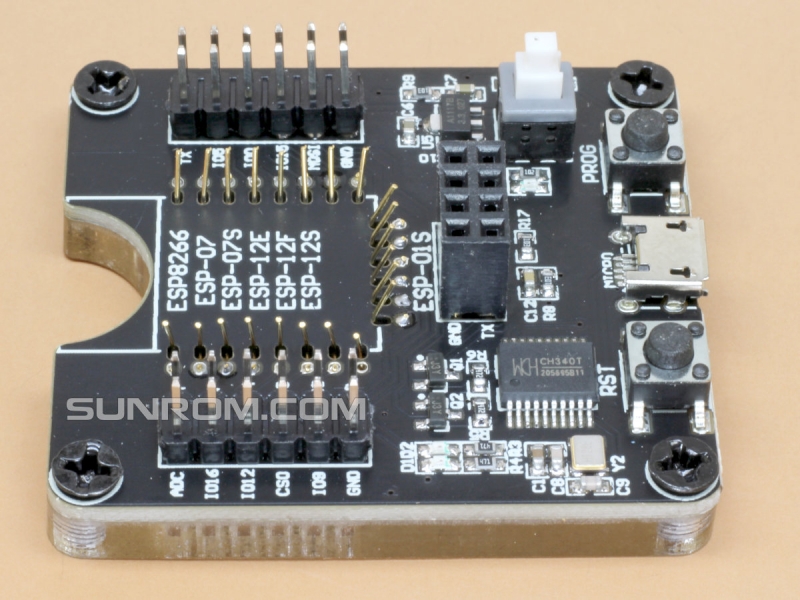

ESP8266 Wifi module Programming / Testing / Burner ZIF Development Board
Easily program and download firmware for ESP8266 Wifi Modules with one click from USB without using any external power or connectors. Quickly insert, program and test modules.
Product Code 7088
ESP8266 test-board burner One-click Download module supports ESP-01S ESP12S ESP07S module
ESP8266 burner suitable for firmware burning test of modules such as anxinke ESP-12S/12F/12E/07S/07/01S/01 ,all IO ports have been extracted and can be as a minimum system development board or a small batch burning fixture .
Features
1. Suitable for firmware burning test of modules such as ESP-12S/12F/12E/07S/07/01S/01
2. Support firmware one-click download
3. Safe and reliable, small size, long service life.
4. There are power indicator light, burning indicator light, serial communication indicator light.
5. Lead out all IO ports,can be as a minimum system development board or a small batch burning fixture
Hardware description
Board size：46*49mm
Board weight : 21g
USB: Micro USB
How to use :
1. According to the operating system to download the corresponding CH340 serial port chip driver and install it.
2. Download official Flash download tool ESPFlashDownloadTool.
3. Automatic firmware download: Insert ESP module, plug in USB cable，Open Flash download tool, configure the corresponding parameters, click start download, The downloader will automatically reset and put the module into burning mode.
