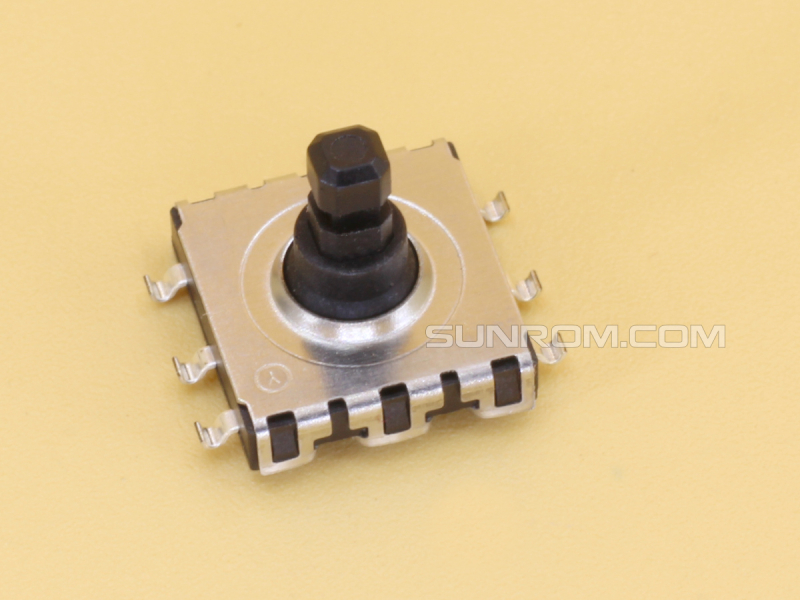

5 way tactile switch 10x10x9mm
Good for making user interface menu navigation
Product Code 4379

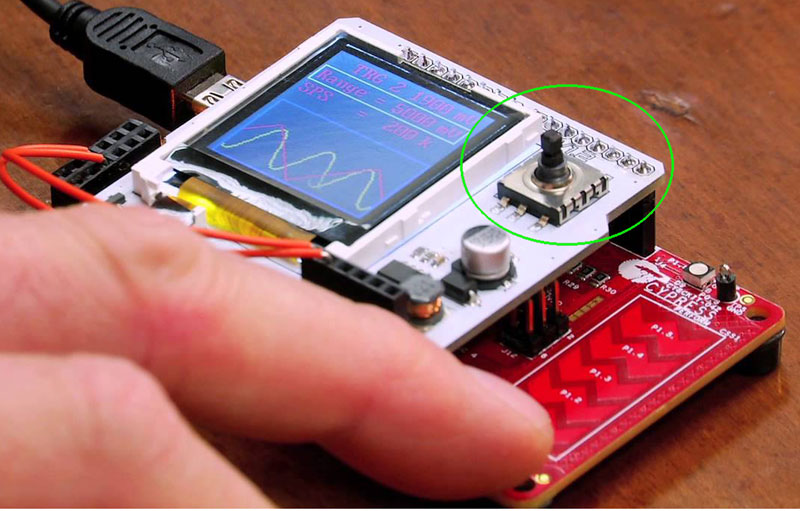

Sometimes you want a small input and a single button just won’t fit it. A 5-way tactile switch allows for a joystick-like interface in a very small package. These are surface mount, but easily soldered.

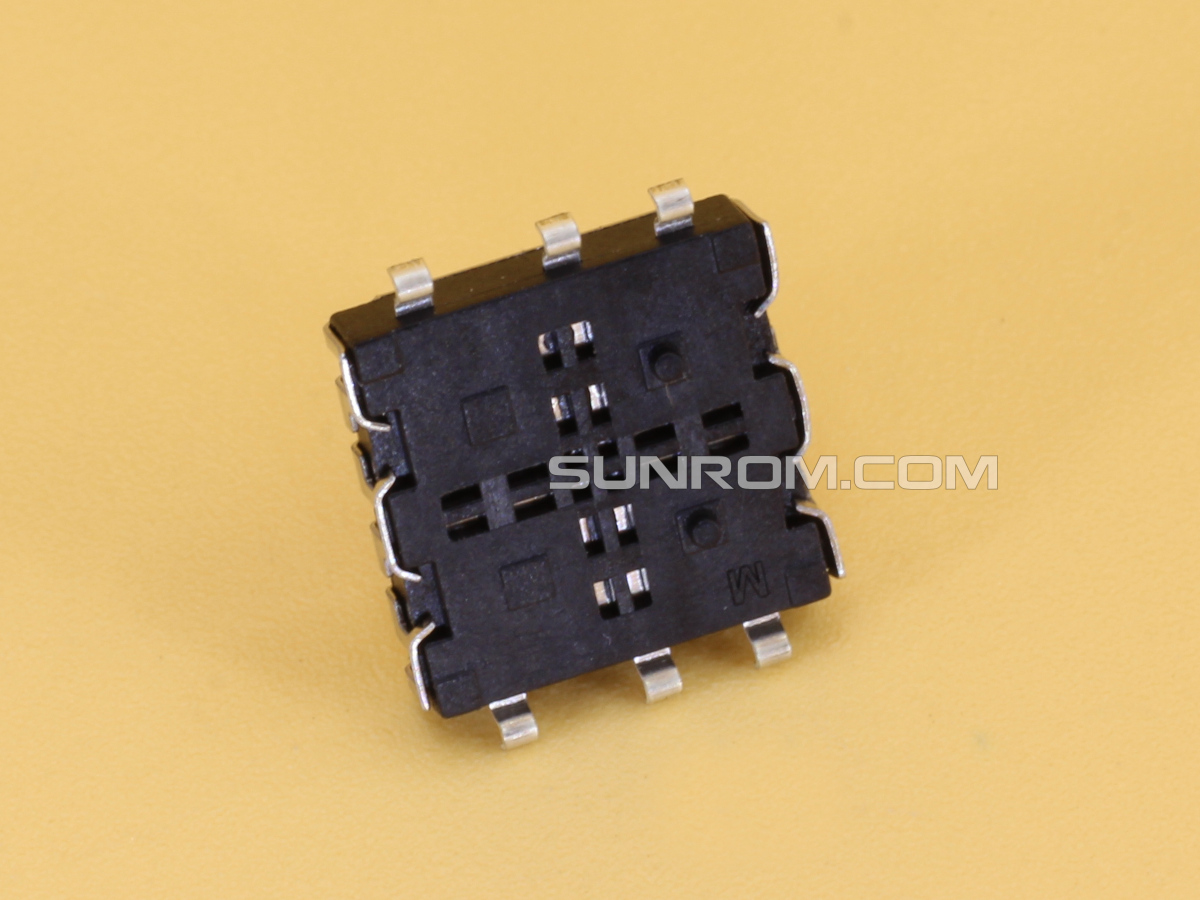

This navigation switch is an intuitive way to add 5 button's worth of interfacing with a single component. Inside is 5 switches: left, right, up, down and 'select' (pressing down), all with a common ground pin.
- Product Name : Tact Switch
- Action Type : Momentary
- Switch Size : 10 x 10 x 9mm / 0.4" x 0.4" x 0.35"(L*W*T)
- Material : Plastic, Metal
- Color : Black, Gold Tone
- Weight : 4g
Suitable for data entry or navigational controls, enabling up/down, and left/right navigation as well as and also include a center push function.
|
Rating |
50mA.12VDC |
|
Insulation resistance |
100MΩ min 100V DC |
|
Dielectric strength |
250V AC for 1min |
|
Contact resistance |
100MΩ max |
|
Operating temperature range |
-30°c to +85°c |
|
Lifetime |
500,000 Cycles min |
|
Operating force |
4-direction 160±30gf Center push 300±50gf |
|
Travel |
4-direction 4º±2º Center push 0.20±0.1mm |

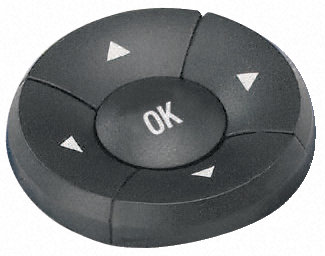

Here are idea for knob design. Currently we are unable to provide it but many customers have designed their interface with CNC cut acrylic sheets.
