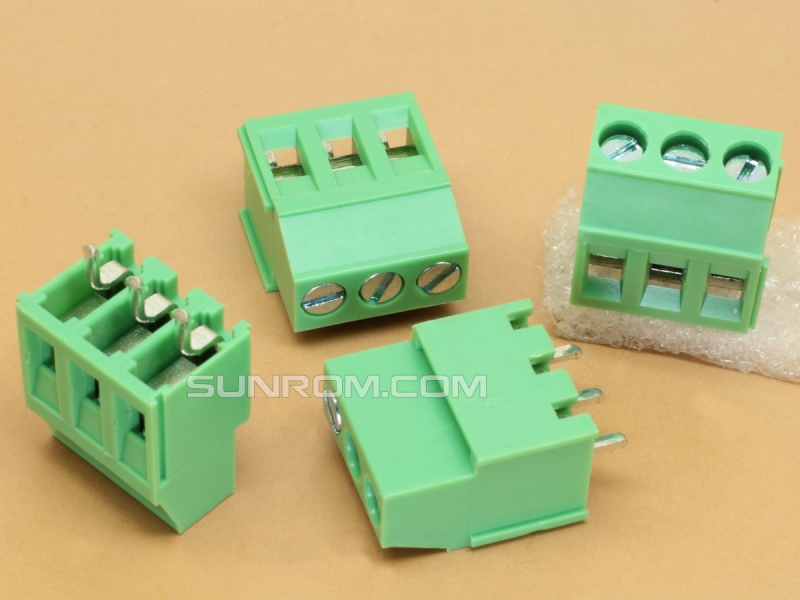

3P 5mm 20A Screw Terminal
PCB Mounting for wire connections, Built in side groves to stack next to each other during long application.
Product Code 6583
Quantity Pricing
Quantity :
Price (Discount%)
1-49 :
Rs.22.50/- (0%)
50-99 :
Rs.21.38/- (5%)
100-499 :
Rs.20.25/- (10%)
500-999 :
Rs.19.80/- (12%)
1000+ :
Rs.19.13/- (15%)
3P 5mm 20A Screw Terminal
Sunrom Product Code for Ordering:
6583
Connections
3
Pitch
5 mm
Current
20 A
Dimensions
BOM：
|
No. |
ITEM |
Origin |
Material |
Surface |
QTY |
|
1 |
Housing |
Own making |
PA66（UL 94V-0） |
—— |
1 |
|
2 |
screw |
outsourcing |
Steel(A3) |
Zinc plated |
2-24 |
|
3 |
Wire Cage |
outsourcing |
Brass or Stee |
Nickel Plated |
2-24 |
|
4 |
Pin header
|
Own making |
Brass |
Tin Plated |
2-24 |
Technical data：
Wire range：26-12AWG 2.5mm²
Voltage&Current：300V 20A
Torque：0.5N.m
Withstand Voltage：AC2000V 60s
Environment：
Operating Temperature：-40℃ ~ +105℃
Pollution Level：Ⅲ
Inspection standards：
GBT 2828.1-2012
Use：Wire Stripping Lenght：6-7±0.5mm
Soldering：
Wave Soldering：260℃/5s
Hand Soldering：soldering iron350℃/10s
