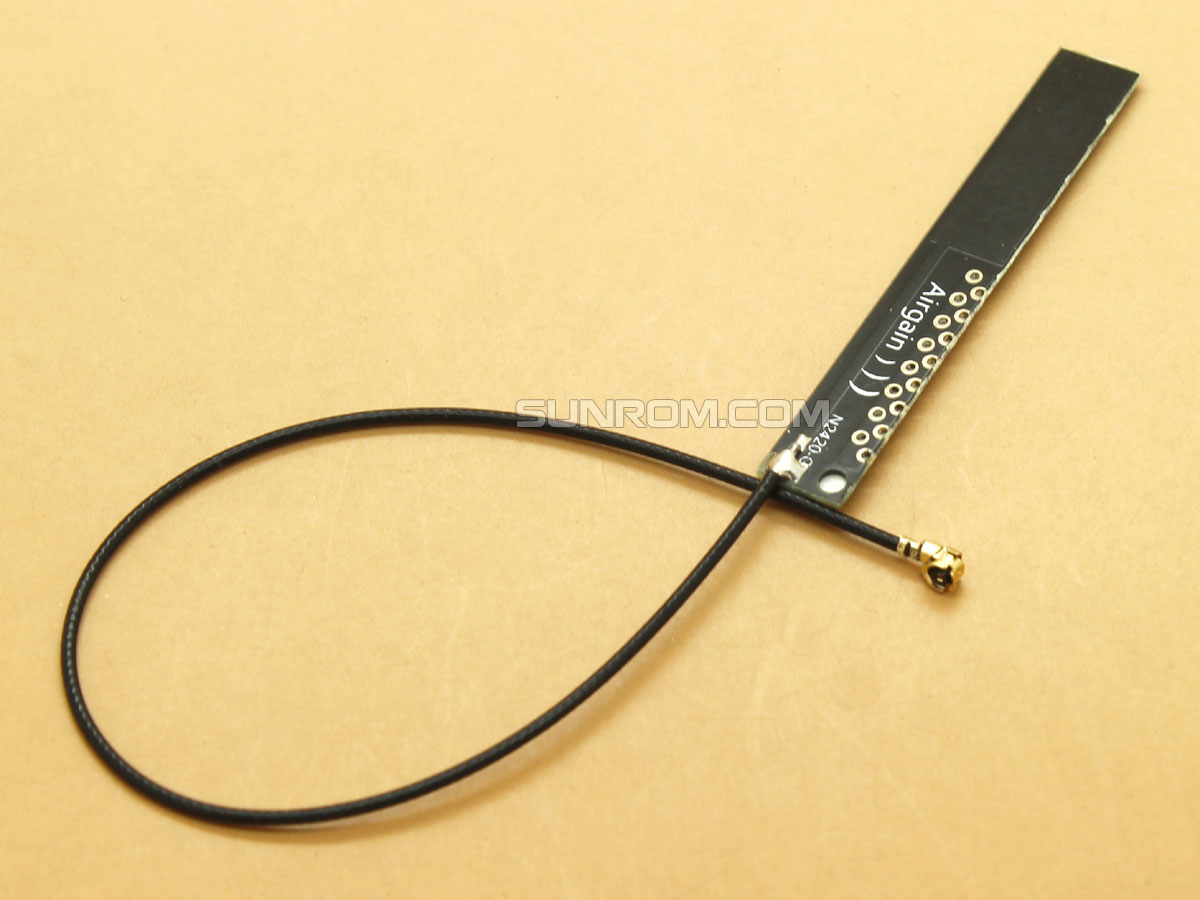

2.4 Ghz 4DB Wifi Omnidirectional Antenna - IPEX/IPX

Product Code 5347

No Stock.
Currently this item is not available for ordering.
Real Time Availability
On Purchase: 500 nos.
Expected on: 04-Mar-2025
Quantity Pricing
Quantity :
Price (Discount%)
1-9 :
Rs.112.00/- (0%)
10-24 :
Rs.106.40/- (5%)
25-49 :
Rs.104.16/- (7%)
50-99 :
Rs.101.92/- (9%)
100-249 :
Rs.100.80/- (10%)
250-499 :
Rs.99.68/- (11%)
500-999 :
Rs.97.44/- (13%)
1000+ :
Rs.95.20/- (15%)

Downloads

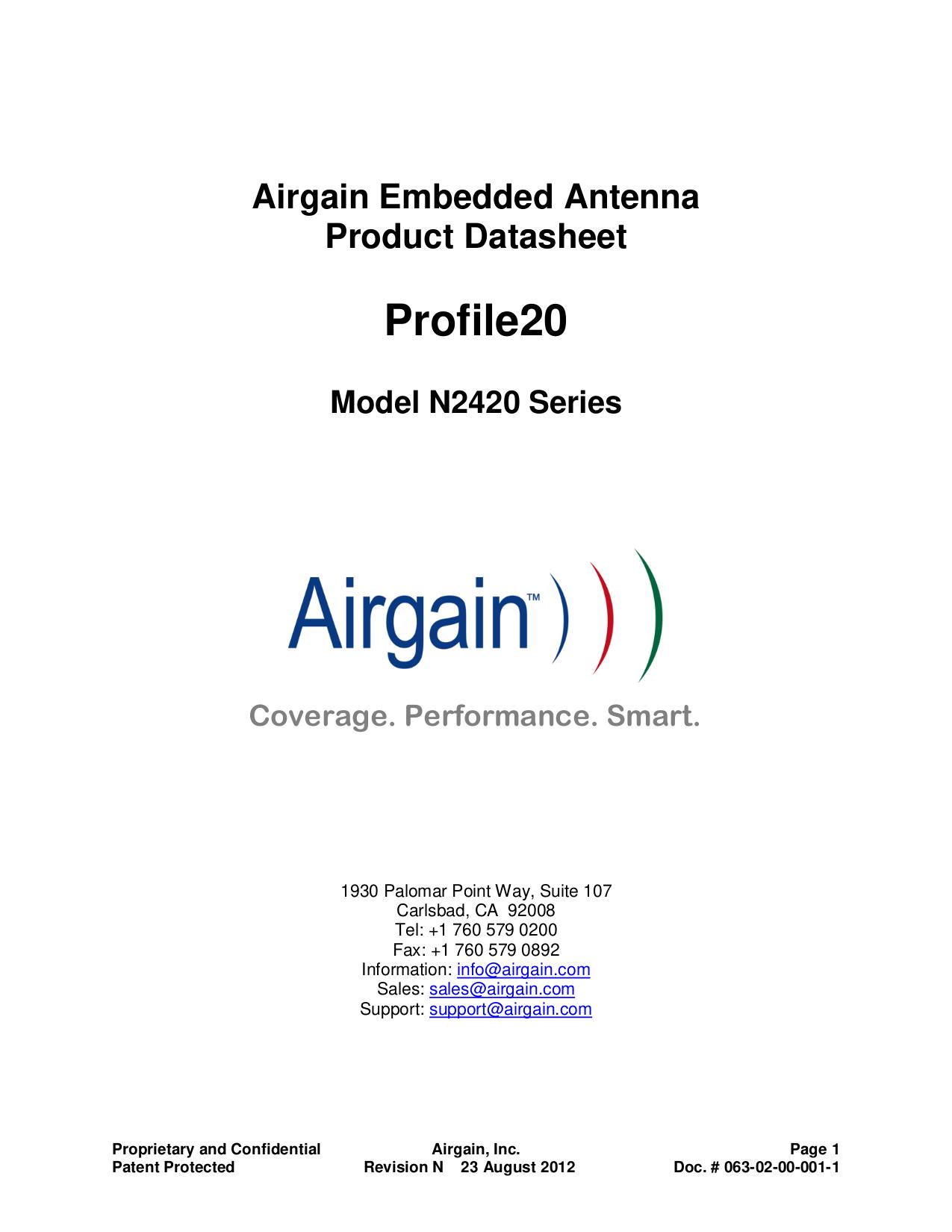

Airgain N2420 Datasheet
2.4 Ghz 4DB Wifi Omnidirectional Antenna - IPEX/IPX
Sunrom Product Code for Ordering:
5347

Network type: IEEE 802.11n or 802.11 b / g / WIFI
Frequency range: 2.4 to 2.49 GHz
Maximum gain: 4dBi (SONY adhesive)
Standing wave ratio: less than 1.5
Input impedance: 50 Ohms
Rated power: 30 dBm
Use feeder: 1.13mm wire length 150MM
Antenna interface: IPEX interface
Antenna size: 48MM * 7.4MM * 1.0MM
PStandard IEEE 802.11n and 802.11 b / g
Frequency Range 2.4 to 2.49 GHz
Peak Gain 4dBi
VSWR> 1.5
Feed Impedance 50 Ohms
Power Handling 30 dBm
Antenna Dimensions 48MM  * 7.4MM * 1.0 MM
