100K Cermet Preset
Variable resistor
Product Code 4553
Quantity Pricing
Quantity :
Price (Discount%)
1-49 :
Rs.4.72/- (0%)
50-99 :
Rs.4.48/- (5%)
100-499 :
Rs.4.25/- (10%)
500-999 :
Rs.4.15/- (12%)
1000+ :
Rs.4.01/- (15%)
Downloads
Cermet Preset Datasheet
100K Cermet Preset
Sunrom Product Code for Ordering:
4553
Value
100K

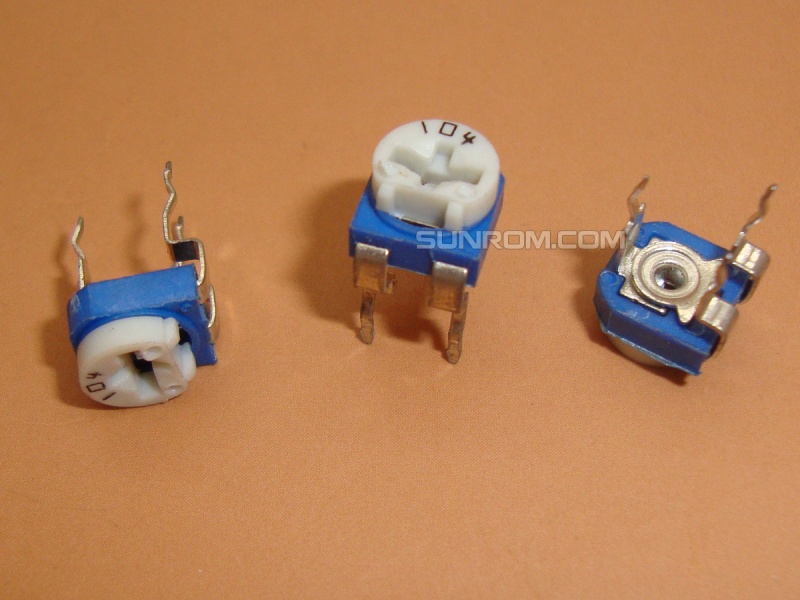

Cermet preset is a compact variable resistor and pcb mountable with 3 terminal pins. The voltage between the terminal varies as the preset is rotated.
The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and cetner pin outputs a variable volatge between 0v and Vcc as the rotary cermet is rotated.
Specifications:
- Track Resistance: 100Kohm
- No. of Turns: 1
- Resistance Tolerance: ± 10%
- Temperature Coefficient: ± 100ppm/°C
- Potentiometer Mounting: Through Hole
- Adjustment Type: Top
- Contact Resistance Variation +: 1%
- Full Power Rating Temperature: 85°C
- Lead Diameter: 0.5mm
- Operating Temperature Range: -55°C to +125°C
- Resistance: 100Kohm
- Resistor Element Material: Variable Rotary Cermet
