Temperature Control Relay - Thermostat - 12V DC - Red - XH-W1209 W1209

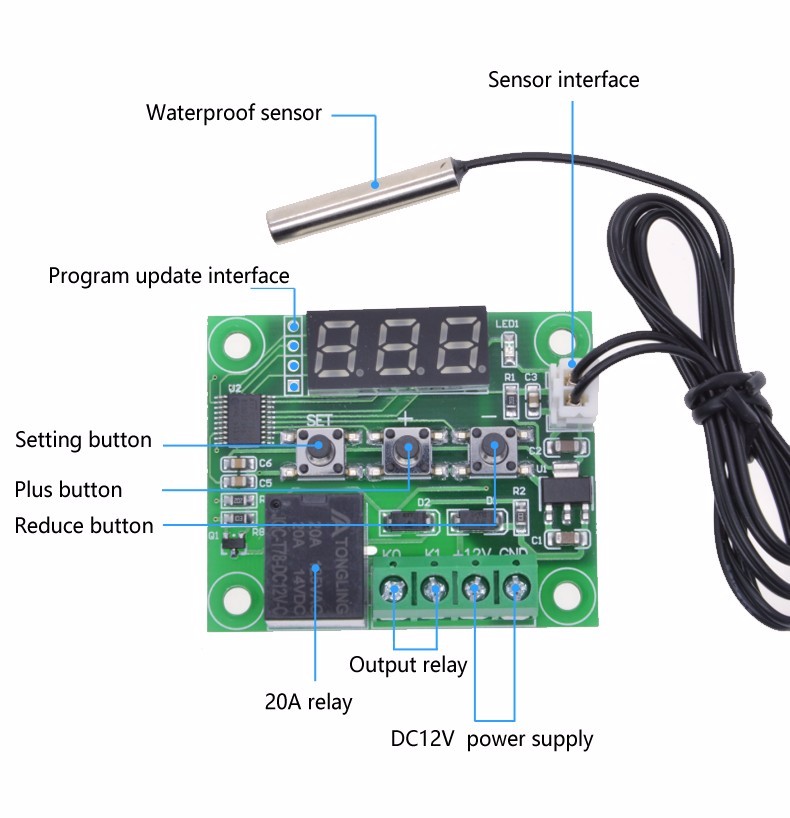

Board is operated from 12V DC and can control 230V AC mains operated heater or cooler via relay on board as per preset through waterproof sensor.
Product Code 6009
Temperature Control Relay - Thermostat - 12V DC - Red - XH-W1209 W1209
Sunrom Product Code for Ordering:
6009
Specifications
- Measuring input: NTC (10K 0.5%) Waterproof sensor
- Input: one 10A relay
- Environmental requirements: -10 °C --60 °C humidity 20% - 85%
- Hole size: 48* 40mm
- Power consumption: Static current ≤35MA pull current: ≤65MA
- Display Type: 0.28 inch, three digital
- Control range : -50~110 celsius
- Temperature accuracy, control accuracy, hysteresis accuracy : 0.1 celsius
- High temperature protection : 0-110 celsius
