DC-DC Step Down High Voltage(Max 60V) 3A - LM2576HV
In = 4.5V-60V / Out = 1.3V-26V(Adjustable) @ 3A High Voltage Input Switching Regulator
Product Code 4317
Quantity Pricing
Quantity :
Price (Discount%)
1-9 :
Rs.620.00/- (0%)
10-24 :
Rs.589.00/- (5%)
25-49 :
Rs.576.60/- (7%)
50-99 :
Rs.564.20/- (9%)
100-249 :
Rs.558.00/- (10%)
250-499 :
Rs.551.80/- (11%)
500-999 :
Rs.539.40/- (13%)
1000+ :
Rs.527.00/- (15%)
DC-DC Step Down High Voltage(Max 60V) 3A - LM2576HV
Sunrom Product Code for Ordering:
4317
Note: We are now using LM2596HVS-ADJ on board which is better, efficient and pin to pin compatible having better thermal specifications.

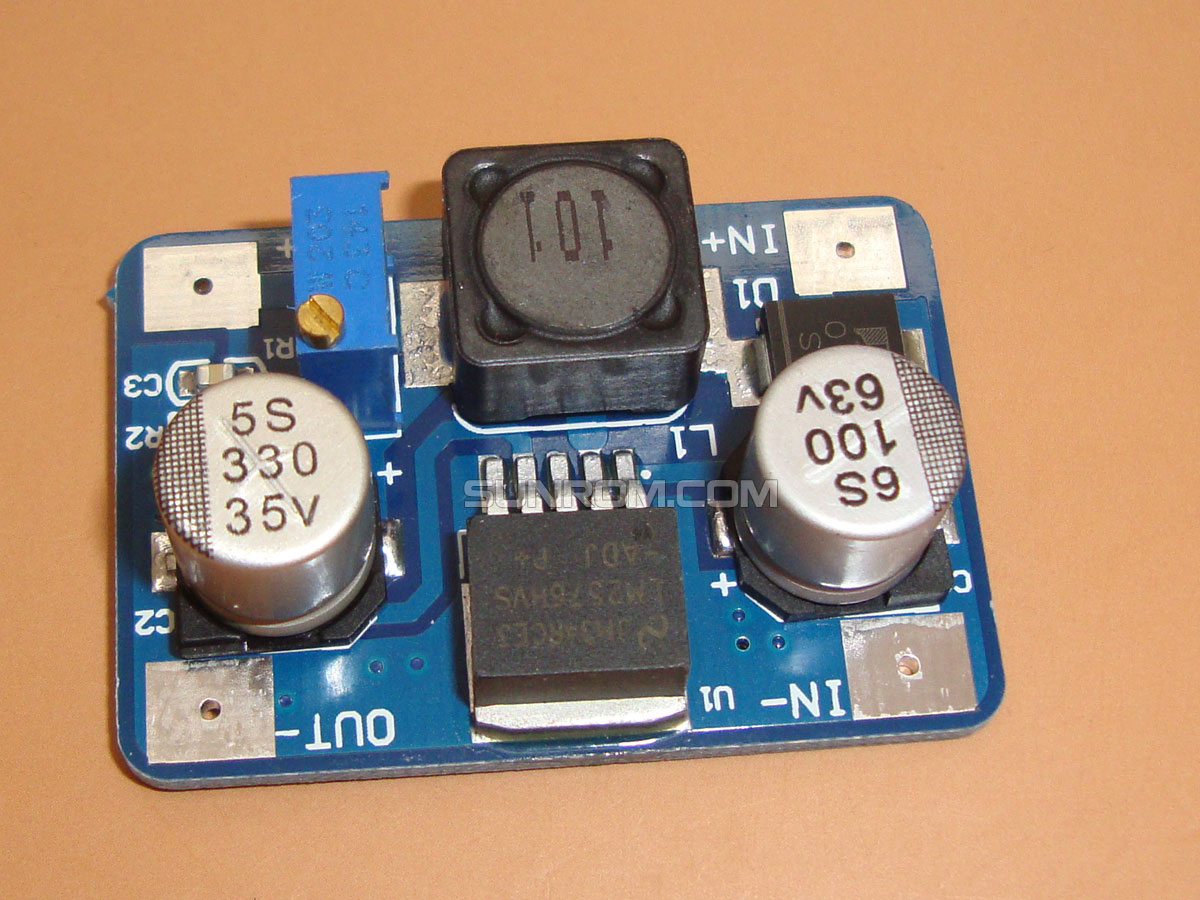

This is an LM2576HV(High Voltage Input/Output upto 60V) DC-DC buck converter step-down power module with high-precision potentiometer for adjusting output voltage, capable of driving a load up to 3A with high efficiency. When the output current required is greater than 2.5A(10W) an external heatsink is suggested.
Specifications
- Module Properties: non-isolated constant voltage module
- Rectification: non-synchronous rectification
- Input voltage: 4.5V-60V
- Output Voltage(Less than input): 1.3V-26V
- Continuous operating current: 1.2A (output total power within 20W)
- Output current: 3A maximum
- Conversion efficiency: 92% (maximum)
- Switching frequency: 52KHz
- Output ripple: 50mV (maximum) 20M-bandwidth
- Load regulation: ± 0.5%
- Voltage regulation: ± 2.5%
- Operating temperature: -40 ℃ to +85 ℃
- Size: 43 * 30 * 14 mm
Board Schematic
